Composite Tooling & Patterns Built for Precision Production
Composite tooling fails when geometry, surface quality, or thermal stability is treated like an afterthought.
Statt Engineering produces precision composite tooling, master patterns, molds, layup tools, trim fixtures, and assembly fixtures for aerospace, defense, marine, motorsport, and industrial manufacturers. Our 5-axis CNC capabilities, large-format machining capacity, and engineering-first approach help teams move from concept to production without losing design intent along the way.
AS9100D quality system
ITAR support
NIST compliance
Large-format 5-axis CNC machining
Composite tooling boards, aluminum, and hybrid materials
Reverse engineering support
Aerospace and defense tooling experience
The tool controls the part. That is where the risk starts.
A composite part can only be as consistent as the tool behind it.
If the mold surface is off, the part is off. If the fixture does not hold the component correctly, trimming and bonding become a rework problem. If the master pattern carries a small error, that error gets repeated.
Statt Engineering builds tooling for teams that cannot afford that kind of drift. We support high-accuracy molds, masters, fixtures, and patterns with the machining capacity, inspection discipline, and engineering judgment needed for mission-critical programs.
Our Capabilites
Composite tooling capabilities
Complex multi-surface machining
For parts that require access to multiple faces, undercuts, contoured surfaces, or intricate geometry without excessive refixturing.
Composite molds
Master patterns
Layup tools
Large-format layup molds and tools designed to support repeatable composite manufacturing.
Trim fixtures
Fixtures for secondary operations, trimming, drilling, slotting, and edge control after composite cure.
Assembly and bonding fixtures
Jigs and gauging fixtures
Materials and tooling formats we support
Statt Engineering works across the tooling materials and formats required for composite manufacturing, including tooling boards, aluminum tools, hybrid tooling, master patterns, molds, and fixtures.
- Epoxy tooling board
- Urethane tooling board
- Composite tooling board
- Aluminum tooling
- Hybrid tooling materials
- Foam
- Carbon
- Large-format molds
- Master patterns
- Layup molds
- Trim and assembly fixtures
Large-Format Tooling Capacity
5-Axis Contouring
High-Speed Trimming & Surfacing
Vacuum Hold-Down & Fixturing Support
Multi-Material Machining
Our Composite Tooling Equipment
Large-format machining for composite tooling
Composite tools often demand more than a standard machine envelope. Molds, masters, and layup tools can be long, wide, deep, and highly contoured. Statt Engineering’s large-format 5-axis machining capability allows us to machine complex surfaces, oversized tooling boards, and precision fixtures with the accuracy needed for repeatable production.
Tooling built around thermal stability and durability
Composite tools are exposed to real manufacturing stress. Heat, pressure, vacuum, handling, trimming, bonding, and repeated production cycles all test the quality of the tool.
Statt Engineering supports thermal and structural tooling requirements for high-temperature cure workflows, autoclave or out-of-autoclave processes, and applications where dimensional stability matters across repeat use.
Composite tooling for demanding manufacturing environments
Aerospace
Composite tooling applications
Aerospace composite molds
Aerospace layup tools
Master patterns for mold replication
Trim fixtures for cured composite parts
Assembly fixtures for composite structures
AS9100D quality system
ITAR support
NIST compliance

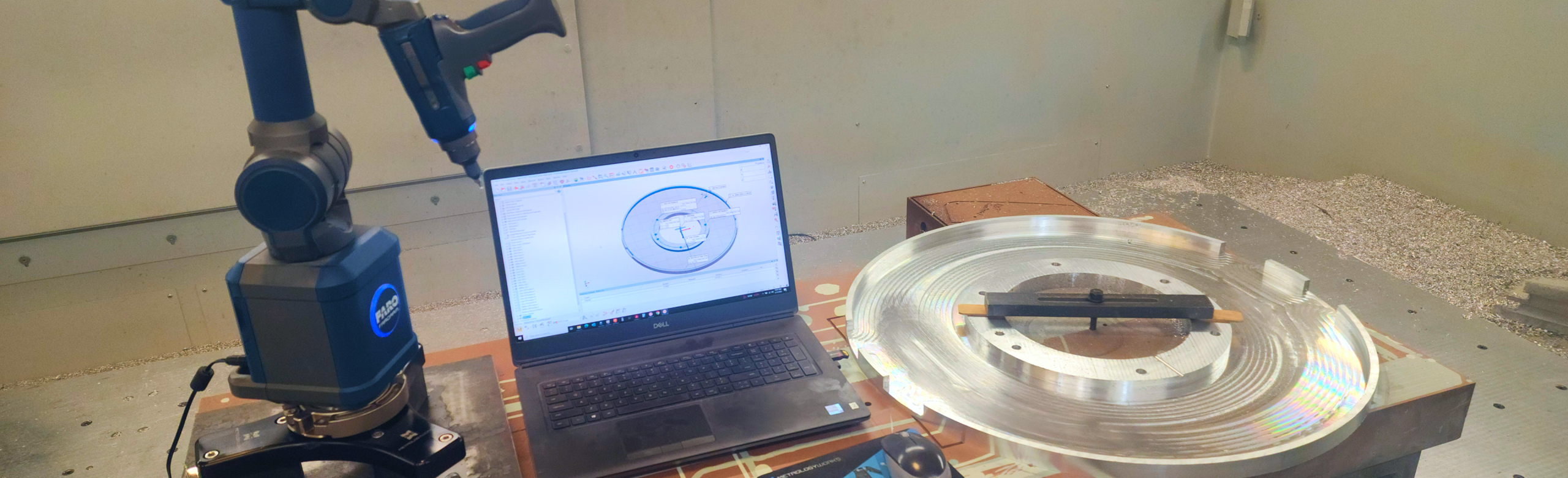

Inspection and dimensional verification
Engineering review
Build-to-print support
Traceability and documentation support
Aerospace and defense supplier readiness
Tooling backed by quality systems buyers can trust
Composite tooling does not get a pass because it is “just the tool.” For aerospace, defense, and high-performance manufacturing, the tool can carry the same schedule and quality risk as the finished component.
Statt Engineering supports tooling projects with quality workflows aligned with AS9100D, ITAR, and NIST requirements. That gives engineering and procurement teams a qualified partner for complex tooling work, overflow capacity, and production-critical manufacturing support.
Our Tools
Why manufacturers choose Statt for composite tooling
Engineering-first support
Large-format 5-axis capability
Fast response when capacity is tight
Statt emphasizes small-business agility with elite aerospace quality. This is especially important for overflow work and short-run or prototype tooling.
Reverse engineering for legacy tools
Statt supports tooling reproduction when original CAD, drawings, or master data is missing.
Compliance-ready manufacturing
Need a legacy mold, tool, or pattern?
Send the tool requirement. We will help you define the cleanest path forward.
Whether you need a new composite mold, a replicated master, a layup tool, or a custom fixture for trimming, bonding, assembly, or inspection, Statt Engineering can help turn the requirement into a precise, production-ready tool.
Composite tooling and pattern FAQs
What types of composite tooling does Statt Engineering produce?
Can Statt produce large-format composite molds and patterns?
Yes. Statt’s capabilities include large-format tooling boards, oversized molds, master patterns, and layup tools supported by large-format machining and 5-axis CNC contouring.
What materials can Statt use for composite tooling?
Statt supports many different type of industry standard materials that include epoxy tooling board, urethane tooling board, composite boards, aluminum, hybrid materials, foam, and carbon.
Can Statt help reproduce an old composite tool or master pattern?
Yes. Statt supports reverse engineering of legacy tools or masters, including projects where original CAD data or tool documentation is missing.
Does Statt support aerospace and defense tooling requirements?
Yes. Statt specializes in aerospace-grade composite applications, AS9100D quality, ITAR support, and NIST compliance.
Can Statt support prototype or short-run tooling?
Yes. One of the reasons many aerospace manufacturers companies choose Statt is for our fast turnaround on short-run or prototype tooling.
